Controller Series
The smart torque controller serves as the central brain of the entire smart tightening system, primarily responsible for precise control, process management, data logging, and system integration. It ensures each fastener connection achieves the required reliability and consistency as specified in the design, minimizing human error to the greatest extent possible. By providing detailed process data, it enables transparency, traceability, and continuous improvement throughout the production process. Widely applied in fields demanding high assembly quality—such as automotive manufacturing, aerospace, precision instruments, and medical devices—it stands as an indispensable key device in modern smart manufacturing and quality management.

Preset Parameters

Precision
Control

Process Management

Data Traceability

System Integration

Safety Protection
Product Specifications
Smart Servo Tightening Controller |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Controller Picture |
Controller Model |
Screen |
Control Mode |
Power Supply |
Input Voltage |
Output Voltage |
Local-storage |
OTA Update |
Dimension |
Weight |
![]() |
SD-X2-8-S | 2-inch color screen | Sensor Control | External Power Supply | 30/62V | 48V | Nonsupport | Nonsupport | 150x110x50(mm) | 570g |
| SD-X2-16-M17-S | 2-inch color screen | Sensor Control | External Power Supply | 30/62V | 48V | Nonsupport | Nonsupport | 150x110x50(mm) | 570g | |
| SD-X2-16-M20-S | 2-inch color screen | Sensor Control | External Power Supply | 30/62V | 48V | Nonsupport | Nonsupport | 150x110x50mm | 570g | |
![]() |
SD-X2-16-M16-A | 2-inch color screen | Current Control | External Power Supply | 48/62V | 48V | Nonsupport | Nonsupport | 150x110x50mm | 650g |
| SD-X2-16-M17-A | 2-inch color screen | Current Control | External Power Supply | 48/62V | 48V | Nonsupport | Nonsupport | 150x110x50mm | 650g | |
| SD-X2-16-M20-A | 2-inch color screen | Current Control | External Power Supply | 48/62V | 48V | Nonsupport | Nonsupport | 150x110x50mm | 650g | |
| SD-X2-16S-A-AT | 2-inch color screen | Current Control | External Power Supply | 48/62V | 48V | Nonsupport | Nonsupport | 150x110x50mm | 650g | |
| SD-X2-16L-A-AT | 2-inch color screen | Current Control | External Power Supply | 48/62V | 48V | Nonsupport | Nonsupport | 150x110x50mm | 650g | |
![]() |
SD-X7i-16-M17-S | 7-inch touch screen | Sensor Control | External Power Supply | DC65V | 48V | Two million | Support | 211x125x35.7mm | 1200g |
| SD-X7i-16-M20-S | 7-inch touch screen | Sensor Control | External Power Supply | DC65V | 48V | Two million | Support | 211x125x35.7mm | 1200g | |
![]() |
SD-X7i-16-M17-A | 7-inch touch screen | Current Control | External Power Supply | DC65V | 48V | Two million | Support | 211x125x35.7mm | 1200g |
| SD-X7i-16-M20-A | 7-inch touch screen | Current Control | External Power Supply | DC65V | 48V | Two million | Support | 211x125x35.7mm | 1200g | |
![]() |
SD-X9S-50A-16-M17-S | Compact 9-inch touchscreen | Sensor Control | Intergated | AC220-260V | 48V | Two million | Support | 232.5x150x137mm | 4000g |
| SD-X9S-50A-16-M20-S | Compact 9-inch touchscreen | Sensor Control | Intergated | AC220-260V | 48V | Two million | Support | 232.5x150x137mm | 4000g | |
![]() |
SD-X9S-50A-16-M17-A | Compact 9-inch touchscreen | Current Control | Intergated | AC220-260V | 48V | Two million | Support | 232.5x150x137mm | 4000g |
| SD-X9S-50A-16-M20-A | Compact 9-inch touchscreen | Current Control | Intergated | AC220-260V | 48V | Two million | Support | 232.5x150x137mm | 4000g | |
![]() |
SD-X9-150A-16-M20-S | 9-inch touch screen | Sensor Control | Intergated | AC220-260V | 120V | Two million | Support | 308x155x172mm | 4000g |
Smart Servo Wireless Tightening Controller |
||||||||||
Controller Picture |
Controller Model |
Screen |
Control Mode |
Power Supply |
Input Voltage |
Output Voltage |
Local-storage |
OTA Update |
Dimension |
Weight |
![]() |
SD-X7i-Wifi | 7-inch touch screen | Sensor Control | External Power Supply | DC12V | 20V | Two million | Support | 211x125x35.7mm | 1050g |
Smart Torque Display Controller |
||||||||||
Controller Picture |
Controller Model |
Screen |
Control Mode |
Power Supply |
Input Voltage |
Output Voltage |
Local-storage |
OTA Update |
Dimension |
Weight |
![]() |
SD-X2-8-A | 2-inch color screen | Current Control | External Power Supply | 30V | 30V | Nonsupport | Nonsupport | 150x110x50mm | 570g |

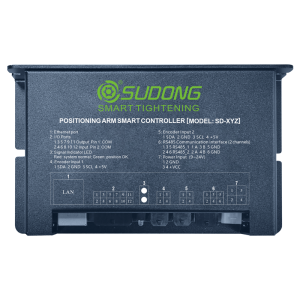

Smart Positioning System Controller |
||||||||||
Controller Picture |
Controller Model |
Screen |
Control Mode |
Power Supply |
Input Voltage |
Output Voltage |
Local-storage |
OTA Update |
Dimension |
Weight |
![]() |
SD-X7-XY-D | 7-inch touch screen | Sensor Control | External Power Supply | DC12V | 20V | Two million | Support | 211x125x35.7mm | 1050g |
| SD-X7-XY-F | 7-inch touch screen | Sensor Control | External Power Supply | DC12V | 20V | Two million | Support | 211x125x35.7mm | 1050g | |
